Fallout 1/2 style isometric movement with grid based pathfinding

How do I...?
1

Hi!

I’m trying to create a movement system very similar to Fallout 1/2.

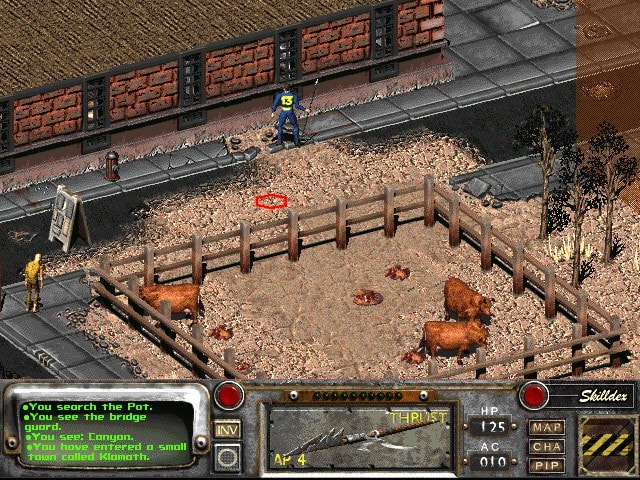

image640×480 173 KB

By that I mean a grid based system, where the movement is based on clicking where the character should go and then they use pathfinding to go there automatically. Though unlike Fallout, I am just using squares, not hexagons.

I’ve tried to use the “Pathfinding Character (Grid Based)” behavior, but it doesn’t seem to have a setting for isometric grids? I’ve set the cell with to 64 and cell height to 32 but it made no difference.

Do I have to make a pathfinding system from scratch or can I somehow setup the pathfinding behavior to work with isometric grids?

2

There’s this template ..I looked at this a while ago (I think it’s one of davys) and I think the movement system was as you described

3

In this game example the graphics are isometric but the movement is completely free, not based along the isometric grid.

4

I’m sure there’s one free isometric project where you tap and it pathfinds to the tap. I’m on my phone though.

5

I don’t know if this can be helpful for your situation, but here there’s a topic about grid based movement I made in the style of NES/SNES Final Fantasy games: [SOLVED] Sprite still moving during separate objects in grid based movement

It isn’t isometric, and no pathfinding is used, but it could be helpful to create a grid-based structure. I apologise in advance if it isn’t useful for your case.

6

thats a classic one!

7

Managed to get it to work using:

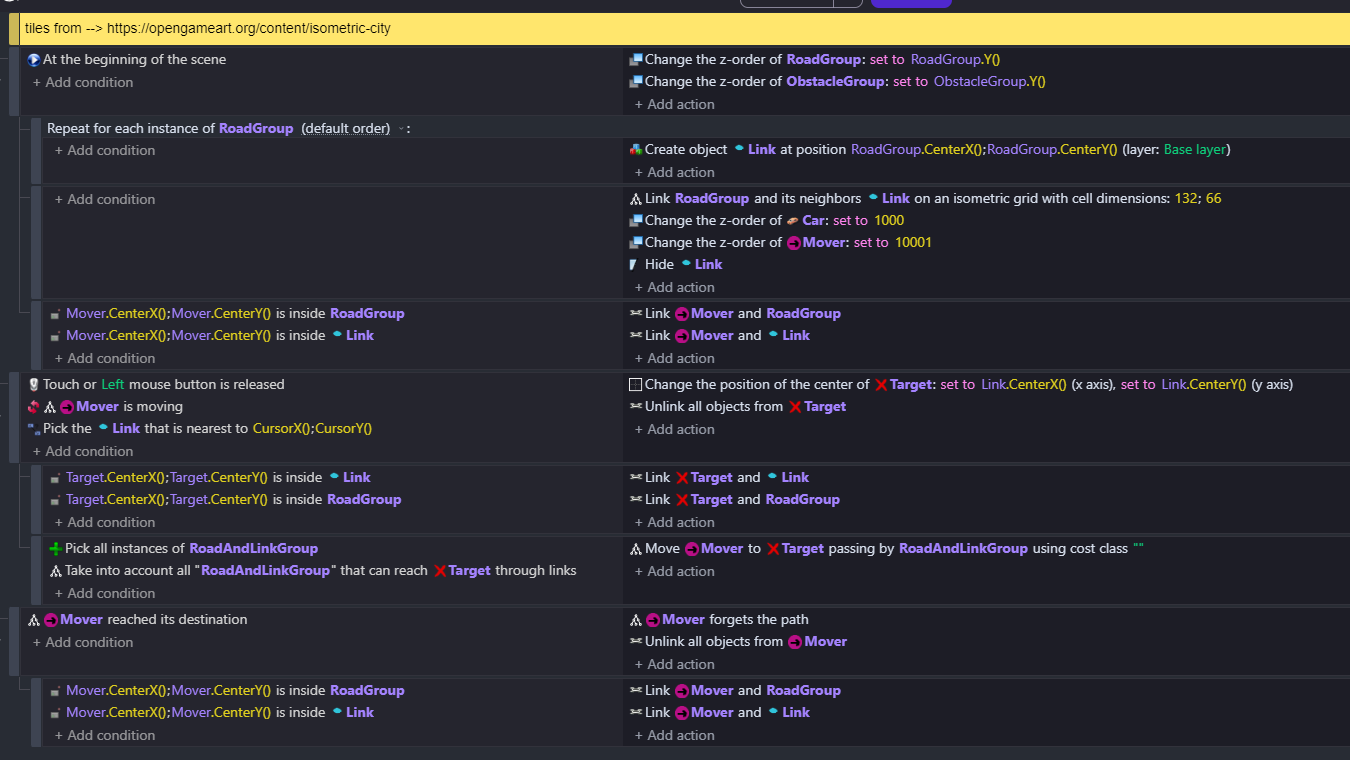

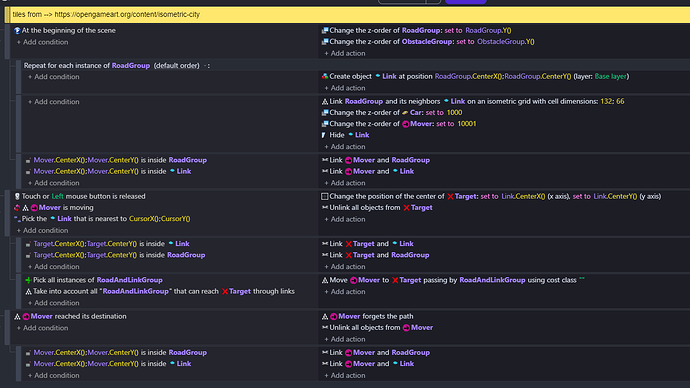

image1350×760 73.7 KB

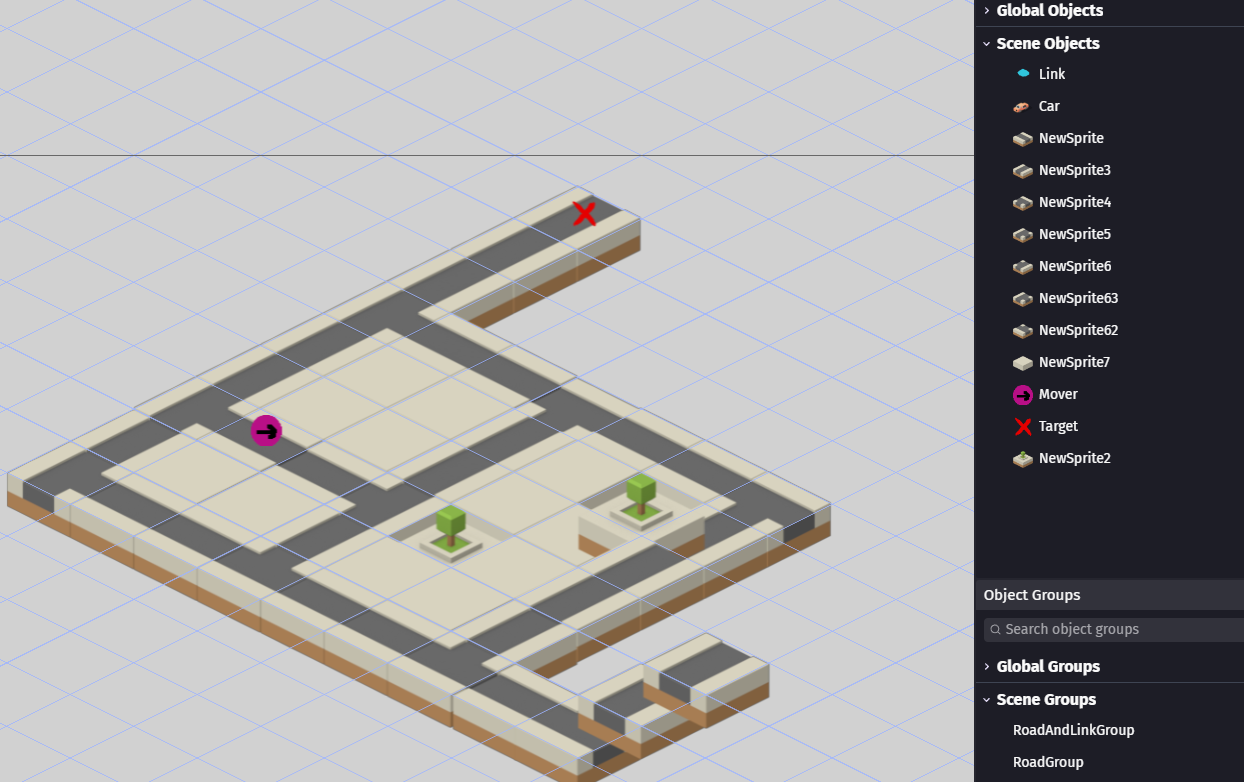

image1244×782 190 KB
